LC 100

Cross Cutting Machine

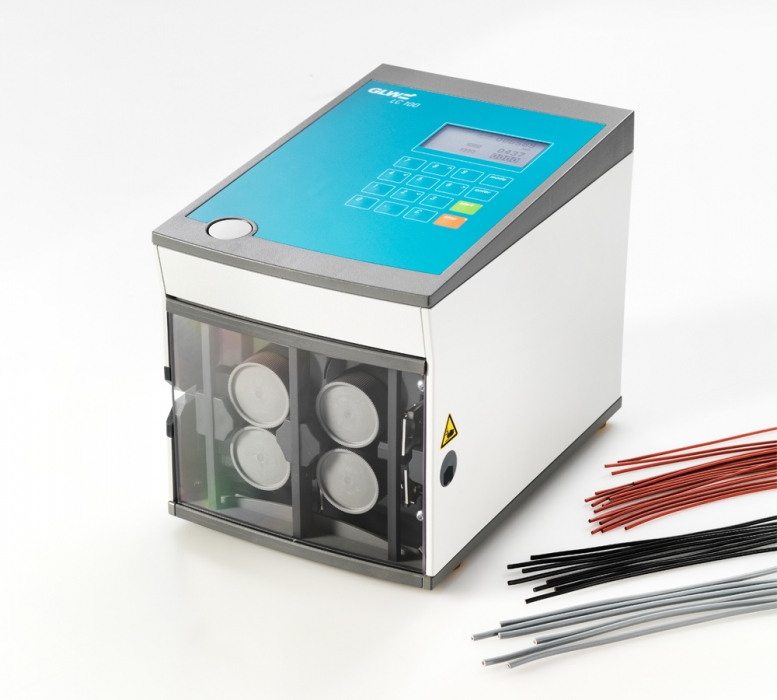

LC 100

Cutting wires, cables and tubes with the LC 100 offers a considerable saving potential. The front safety cover is simply opened by pressing a button. After the insertion of the material, both the measuring rollers and the transport rollers are automatically adjusted onto the diameter whilst closing the cover. Enter the required length and the number of pieces and the production can start.

With the provided software it is possible to improve production as repeat cutting orders can be processed on the PC and transferred to the LC 100.

For cutting cables, strands, fine wire and tubes to length

  • Easy and safe to handle
  • Quick and simple material change
  • Cable diameter is automatically recognised
  • Light weight allows easy transportation
  • Enhanced measurement accuracy due to independent measuring system
  • Simple and quick input due to clear graphic display and control panel

Equipment

  • Steel rollers for very hard materials
  • PU-coated rollers for sensitive cable insulations
  • Cable dereeler DR 30 for trouble-free feeding of cables
  • Software for processing repeating orders and series production
  • Printer for wire marking
  • Cable assembly for medium to small production series
  • Prototype construction
  • Switch cabinet building

Technical data LC 100

Cutting capacity fine wire:0.08 – 10 mm 2  / 28 – 8 AWG
Max. cable outer diameter:8 mm (0.32")
Gauge length:2 mm - 1000 m
Feed speed:0.04 - 0.5 m / sec
Power supply:100 – 240 VAC /  50-60 Hz
Power consumption:150 VA
Dimensions (L x W x H):301 x 194 x 228 mm (11.9 x 7.7 x 9.0")
Weight:10 kg / 22 lbs
