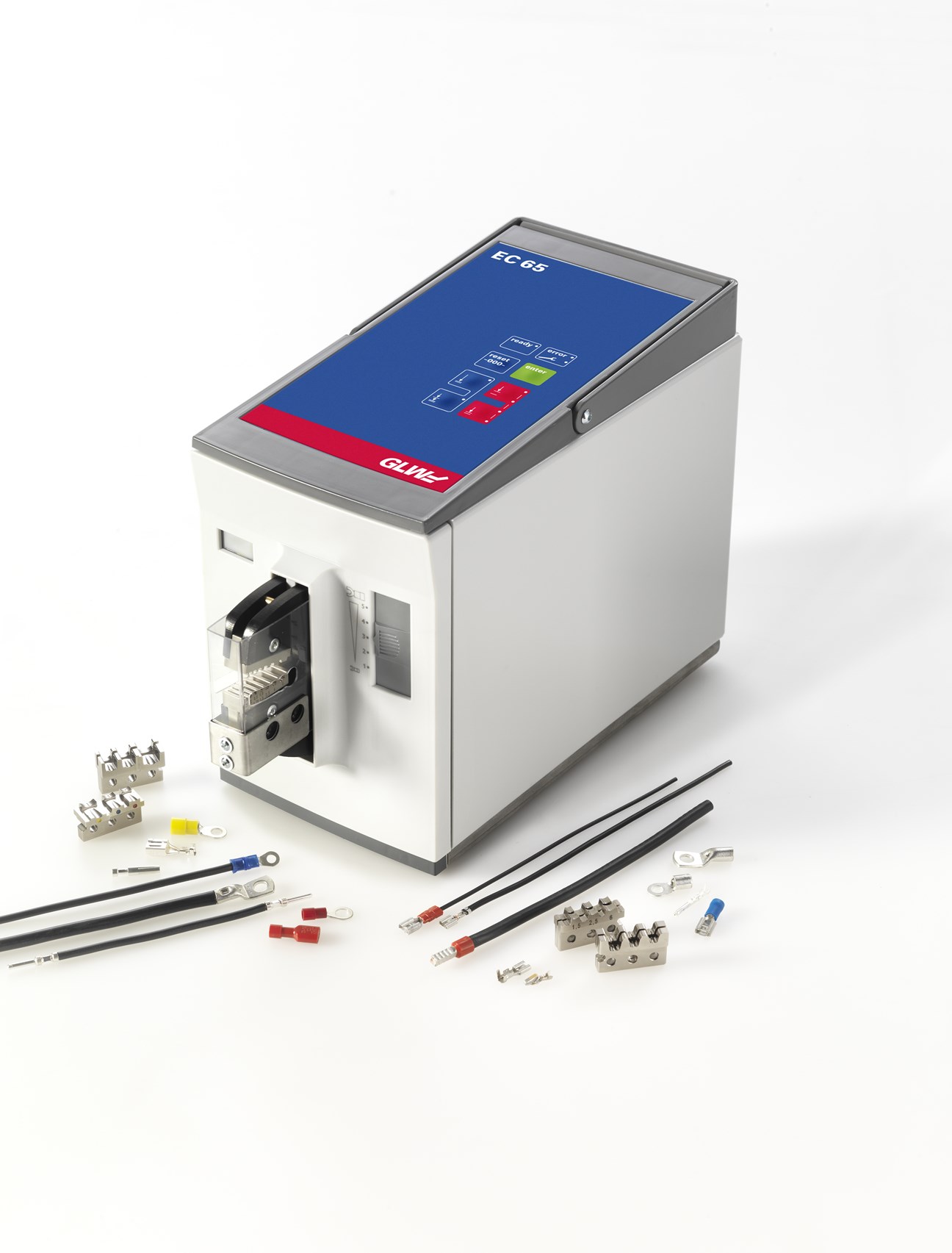

EC 65

Electric Crimper

EC 65

The Electric Crimper EC 65 allows crimping a wide variety of different contacts. The crimping process is actuated by foot switch. Both hands are free to insert the contact into the crimping die. The contact can be retained before crimping process starts just by selecting the additional two-step operating mode. This simplifies the processing of complex crimp contacts and avoids faulty crimps. The width of the opening of the die is adjustable in 5 steps. The die can be easily changed with just a few hand movements. For individual requirements, we manufacture crimping dies to customer's specifications. On request we create a sectional view of the crimped contact for quality assurance.

Easy to operate with high flexibility

  • No compressed air necessary
  • Crimping die easy to change
  • Carry handle enables different work stations
  • Lower energy costs compared to compressed air machines
  • Flexible use thanks to a wide range of crimping dies
  • Positioning aids simplify crimping of contacts


  • Crimping die sets for a wide variety of contacts
  • Positioning aids (locators) for contacts
  • Starter kit: Case with the most important die-sets
  • Special die sets to individual specifications
  • Sectional views for quality assurance
  • Cable assembly
  • Switch cabinet building
  • Assembly area
  • Service workshops

Technical data EC 65

Max. press capacity10 kN
Cycle time1 s
Power supply230V / 50Hz (115V / 60Hz)
Power consumption160 VA
Dimensions (L x W x H)320 x 140 x 220 mm
Weight10 kg / 22 lbs
