Pneumatic Crimper AC

Overview

The fatigue-free alternative to hand crimpers

Easy to operate
Light weight
Robust housing
Fatigue-free work
Maintenance-free

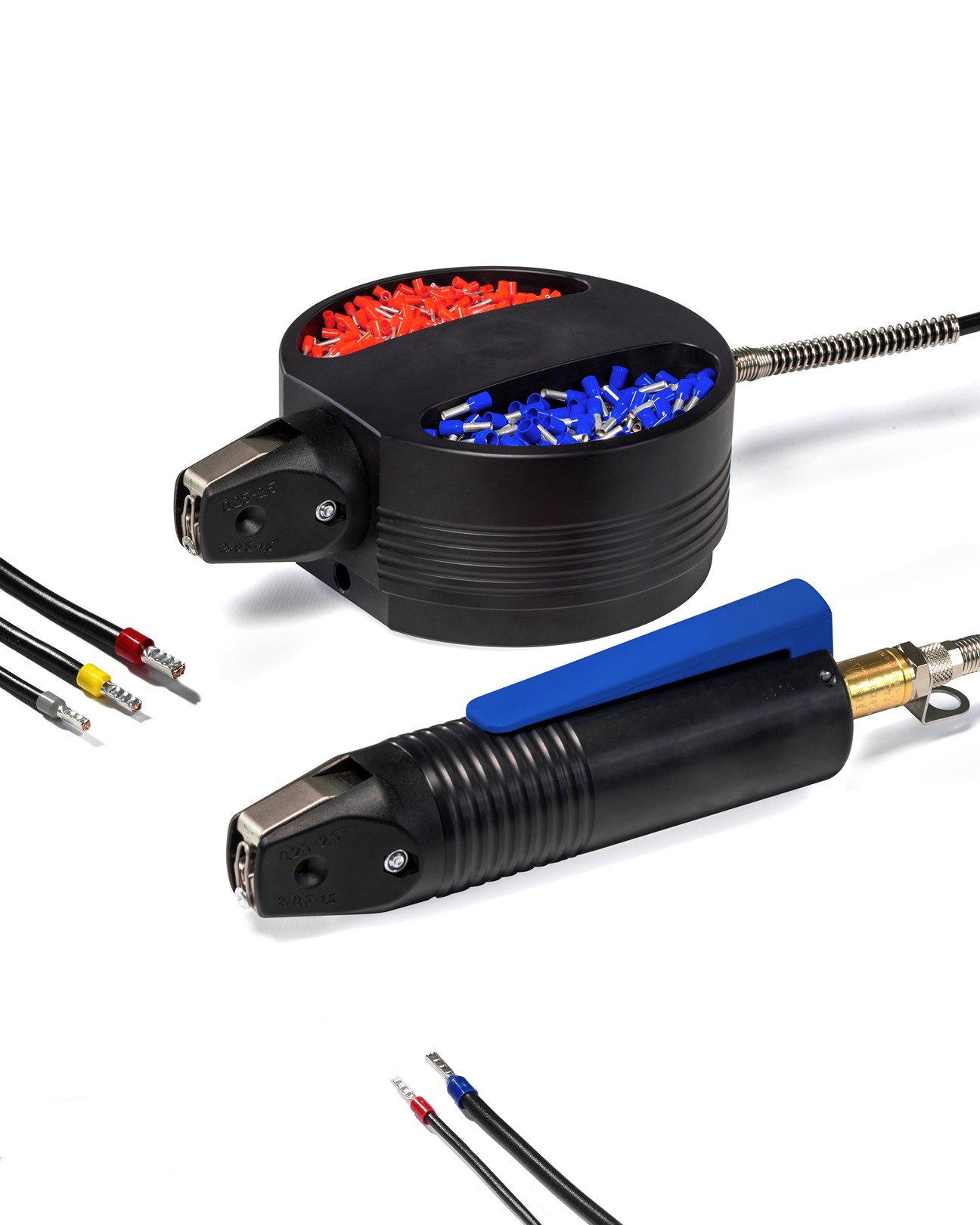

The AC Pneumatic Crimper processes wire end sleeves quickly without tiring you out. An ideal alternative to hand crimpers that relieves joints and tendons. The AC 25/40/100 models are light and handy and are perfectly suited to switch cabinet buidling. The additional front die for the AC 25 allows to crimping in very cramped locations.

The AC 25T/40T/100T bench models are equipped with their own foot switch. Both hands are thus free to fit the conductors into the wire end sleeves. Thanks to the sturdy polyamid housing, the devices are equal to any rough industrial task.

For square crimps we recommend the AC 25SQ and AC 25SQ T.

Features

Cable assembly
Switch cabinet building
Production lines
Workshop
Repair service

Technical Data

Hand version

Version	mm²	AWG	Weight	Dimensions	Connection
AC 25	0.14 – 2.5	26-14	0.4 kg / 0.9 lbs	Ø 44 x 200 mm	5 bar/ 72 psi	Spiral hose length 2 m
AC 25SQ	0.5 - 2.5	20-14
AC 40	0.14 – 4	26-12
AC 100	4 – 10	12-8

Benchtop version

Version	mm²	AWG	Weight	Dimensions	Connection
AC 25 T	0.14 – 2.5	26-14	1.0 kg / 2.2 lbs	Ø 140 x 200 x 70 mm	5 bar/ 72 psi	Spiral hose length 2 m, foot switch, table clamp
AC 25SQ T	0.5 - 2.5	20-14
AC 40 T	0.14 – 4	26-12
AC 100 T	4 – 10	12-8

Downloads

Pneumatic Crimper AC catalogue
