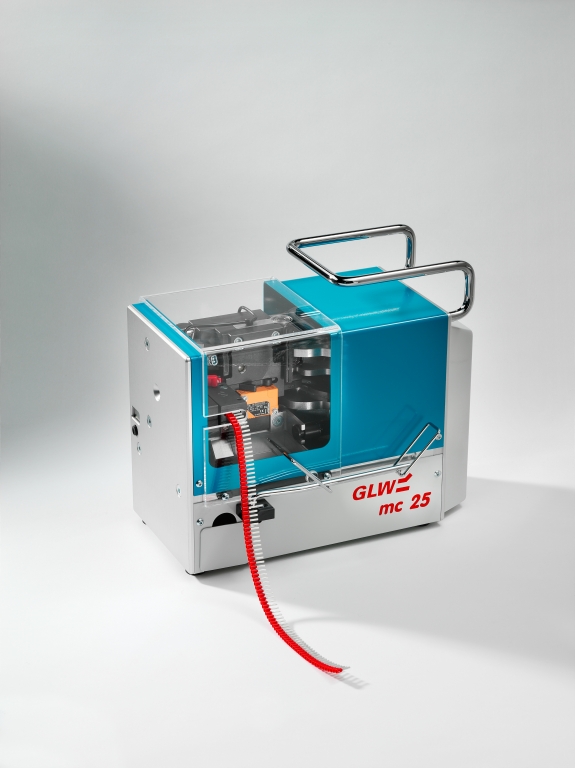

MC 25

Stripper and Crimper

MC 25

MC 25 combines stripping and crimping for ferrules to one work step. The device is controlled via an ingenious curve mechanism that achieves a more reliable work process. Change the cross-section with just a few hand movements. These features make the MC 25 an essential aid in the processing of wire end sleeves.

Quick and precise processing of wire end sleeves

  • Easy to operate
  • Quiet operation
  • Quick change of cross-section
  • Compact construction allows for mobile use



  • Cable assembly
  • Switch cabinet construction
  • Production lines
  • Workshop

Technical data

Cross-section:0.5 – 2.5 mm²
Crimp length:8 mm
Cycle time:1.5 s
Counter:LCD display
Power supply:230 V / 50 Hz (115 V / 60 Hz)
Dimensions (L x W x H):320 x 165 x 270 mm
Weight:12 kg / 26.5 lbs
