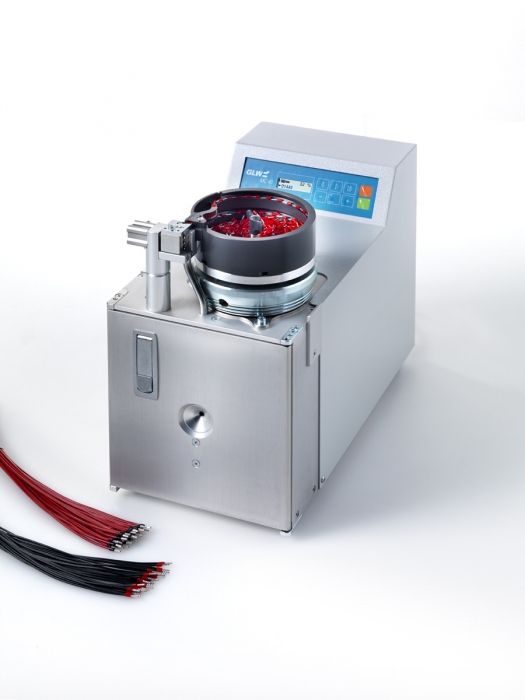

MC 40-1

Stripper and Crimper

MC 40-1

Automatic processing of wire end sleeves 6-12 mm length

  • Stripping and crimping in one work step
  • No special tooling for length adjustment required
  • Quick change of cross-sections with just a few hand movements
  • High level of reliability due to maintenance and wear-free components

The MC 40-1 provides efficient processing of loose wire end sleeves with plastic collars in different lengths. This version requires no special tooling length adjustment. It is simply done by a thumb wheel. The machine features a high level of reliability and flexibility. The use of premium components in combination with a robust construction ensures reliable operation.

Cross-sections can be changed quickly with just a few hand movements. After the wire end sleeves have been changed in the conveyor bowl, only the cross-section-specific receptacle still just needs to be snapped in and then production can continue.


  • Extension kit for 0.25 / 0.34 mm² (length 6 and 8 mm)
  • Extension kit for 2.5 mm² (length 8 - 12 mm)
  • Extension kit for 4 mm² (length 10 mm)
  • Crimping die for square crimping
  • Replacement conveyor bowl for a quick cross-section change
  • Expansion kit for wire end sleeves for conductors with thick insulation (UL wires)
  • Cable assembly
  • Switch cabinet construction

Technical data MC 40-1

Cross-section0.5 – 1.5 mm²
Cycle time1.0 s
Crimp length6-12 mm
Power supply110 - 240 V / 50 - 60 Hz
Compressed air connection5 bar
Dimensions (L x W x H)550 x 250 x 412 mm (21.7x 9.8x 16.2")
Weight27 kg / 60 lbs

Technical data MC 40L

Cross-section4 / 6 / 10 mm²
Cycle time1.5 s
Crimp length12 mm
Power supply110 - 240 V / 50 - 60 Hz
Compressed air connection6 bar
Dimensions (L x W x H)550 x 250 x 412 mm (21.7 x 9.8 x 16.2 ")
Weight27 kg / 60 lbs
