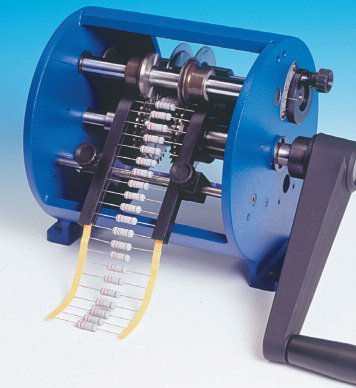

Cutting bending machine for axial components vertical mounting


The model TP6/V is designed for cutting and bending taped axial components for vertical mounting.

The machine is manufactured in two versions: the fist one for components with lead diameter from 0.5 to 0.8 mm (.019 to .031 inc.) and the second for lead diameter from 0.8 to 1.3 mm(.031 to .051 inc.).

The bending pitch, which is determined by the bending cam supplied, can be changed by replacing the cam with one of the other size cams. The CS30 loose components feeder is an accessory that attaches to the TP6/V to handel loose parts. Its assembly to the machine is very quick and easy. The Motor drive unit MOT98 driving with foot pedal also, and adjustable speed, will make the operation automatic and will increase the production with both taped and loos components. When working with components on tape and reel we suggest the use of the BR6 reel holder. The TNS is an accessory that helps with the enjection of the waste tepe.

Need more Information?
Call (91) 9595525010 or e-mail
