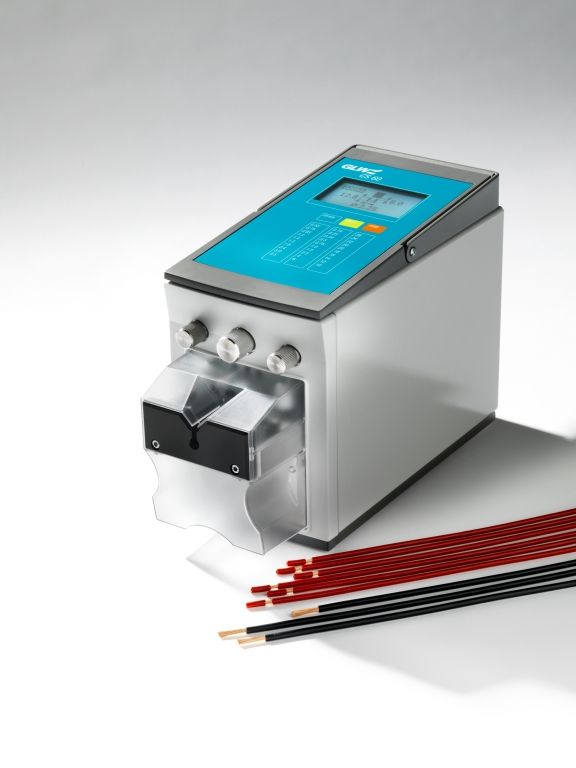

CS 60

Wire Stripper

CS 60

Quick, easy and highly efficient


  • Quickly adjust length and cross-section
  • Carrying handle allows for portable use
  • Large graphic display simplifies adjustment
  • The automatic clamping forcing adjustment protects sensitive insulations

The CS 60 can be easily adjusted with the large, user-friendly buttons. The large graphic display visualises the data entered. In just a few seconds, the cross-section and stripping adjustments are completed, which implies that the CS 60 is also well suited for small series.

In addition, the partial stripping function allows cable to be prepared in larger numbers. The cable insulation is not completely stripped and this prevents the strands from fanning out.


  • Semicicular special blades adapted to cable diameter
  • Cable assembly
  • Switch cabinet building

Technical data CS 60

Working cross-section0.08 – 6 mm² / AWG 28 – 10
Max. cable diameter6 mm
Stripping length2 – 20 mm
Partial stripping length2 – 20 mm
Feed-in length + stripping length15 mm + X
Cycle time (full strip)0.3 sec
Stripping bladeV shape
Power supply230V / 50Hz (115V / 60 Hz)
Dimensions (L x W x H):363 x 141 x 221 mm
Weight:9.5 kg / 21 lbs
Need more Information?
Call (91) 9595525010 or e-mail
